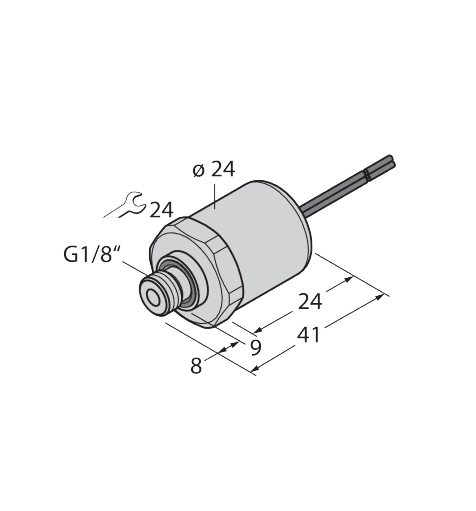

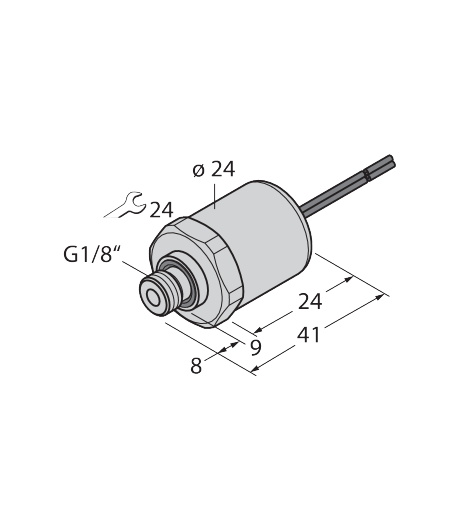

Pressure Transmitter

PT1VR-1013-U1-WM0.5

Order ID no. 100002407

Protection class: IP65
Output function: Analog output voltage
Approvals: cULus
Design: Without display
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Stranded wires
Connector type: Open end
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Voltage output (3-wire)
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Pressure range: -1…0 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
