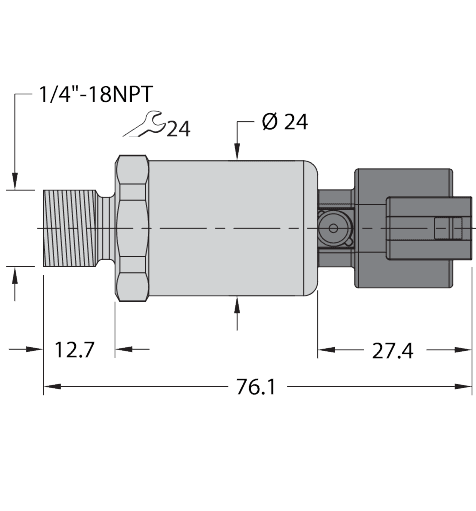

PT5000PSIG-2103-I2-DT043P | TURCK - Your Global Automation Partner

Pressure Transmitter

PT5000PSIG-2103-I2-DT043P

Order ID no. 100004486

homeHome
Loading...

Protection class: IP69K
Output function: Analog output current
Approvals: cULus
Design: Without display
Process connection: 1/4″ NPT-18 male thread
Electrical connection: Connector
Connector type: Deutsch DT04-3P
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Pressure range: 0…344.74 bar

Key Features

Electrical output: Current output (2-wire)
Process connection: 1/4″ NPT-18 male thread
Pressure range

0…344.74 bar

In Stock
Price Group	J1
List Price	€138.10
