PT10R-1119-U6-DT043P | TURCK - Your Global Automation Partner

Pressure Transmitter

PT10R-1119-U6-DT043P

Order ID no. 100019016

homeHome
Loading...

Electrical output: Voltage output (3-wire)
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Approvals: cULus
Electrical connection: Connector
Connector type: Deutsch DT04-3P
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Ceramic Al₂O₃

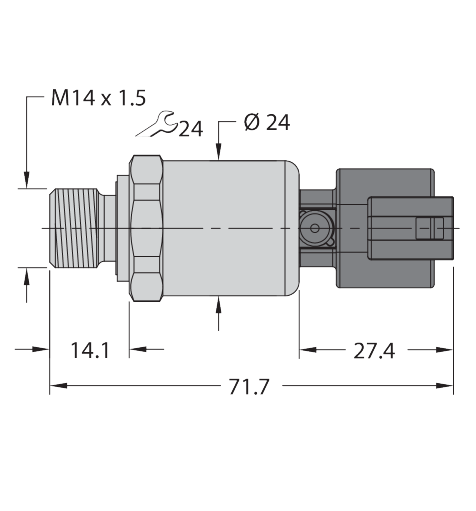

Process connection: M14 × 1.5 male thread
Media temperature max. (°C): 125
Media temperature min. (°C): -40
Pressure range: 0...10 bar
Operating voltage: DC
Output function: ratiom. 10…90%
Pressure type: Relative pressure
Protection class: IP69K

Key Features

Electrical output: Voltage output (3-wire)
Process connection: M14 × 1.5 male thread

In Stock
Price Group	J1
List Price	€138.10

homeTurck-Shop
Products
Sensors
Pressure Sensors
PT10R-1119-U6-DT043P

Item Total€138.10

Quantity
