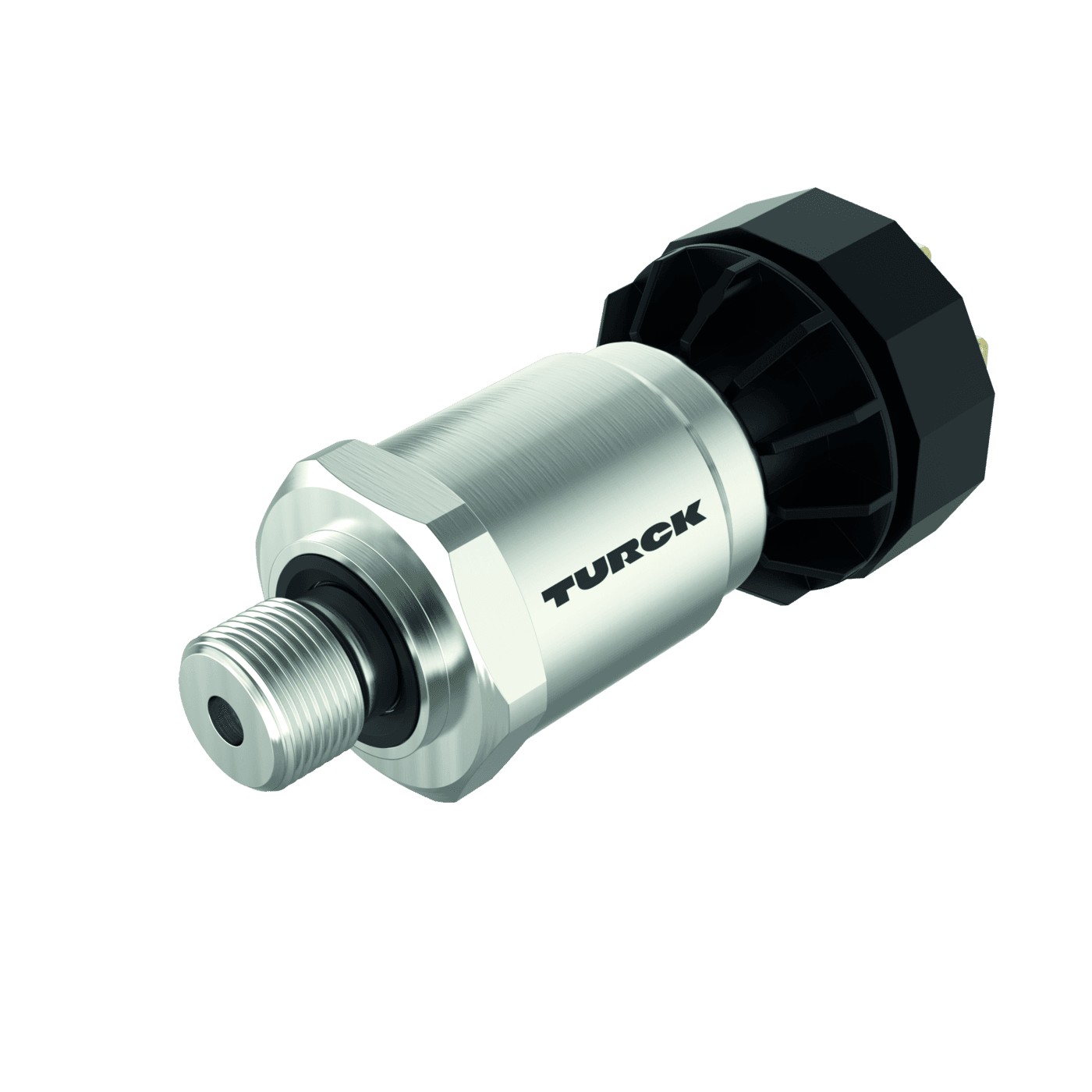

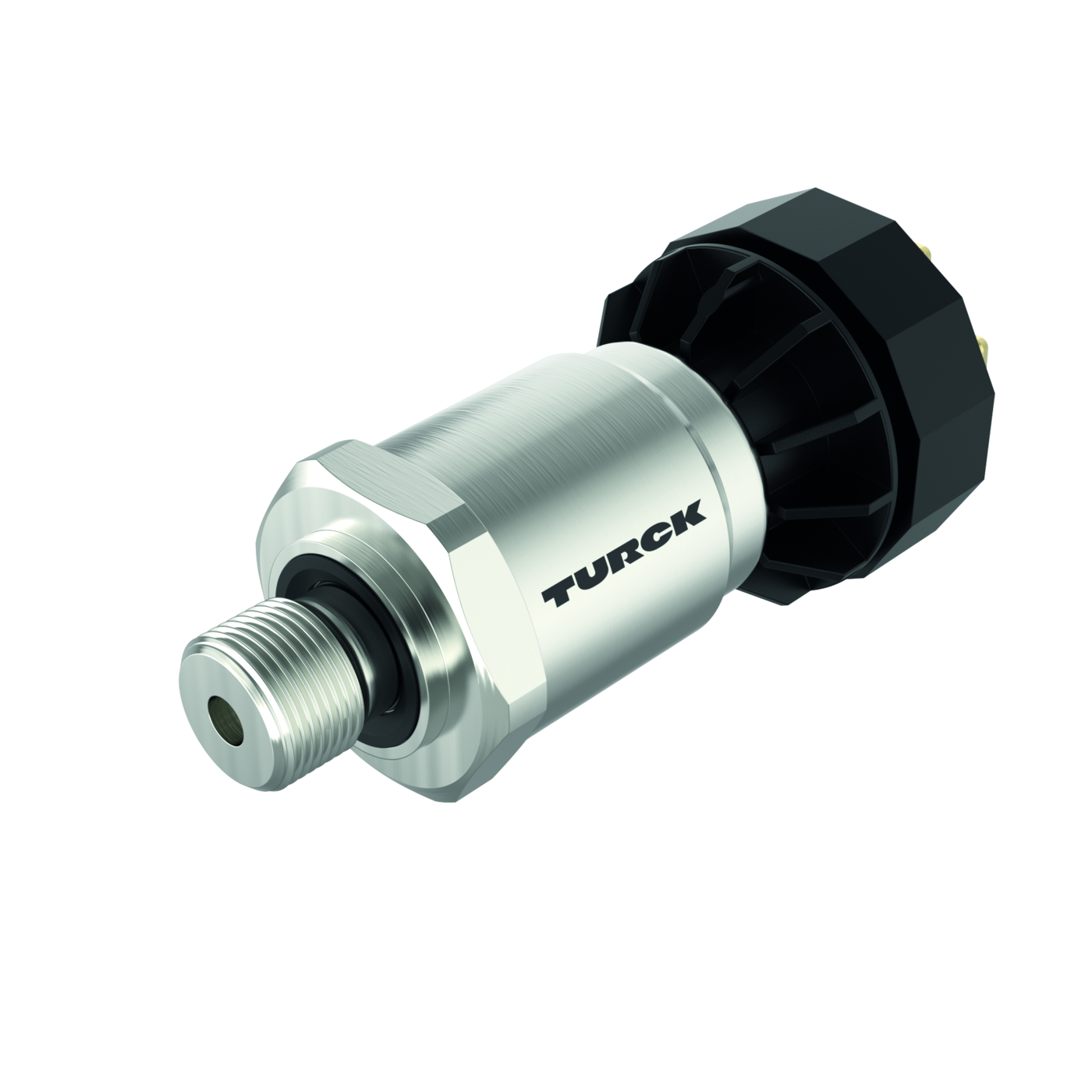

Pressure Transmitter

PT0.4R-1504-I2-DA91/D840

Order ID no. 100050947

Item Total€252.90

Quantity

Electrical output: Current output (2-wire)
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -25
Approvals: cULus
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Ceramic Al₂O₃
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature max. (°C): 85
Media temperature min. (°C): -15
Pressure range: 0...0,4 bar
Operating voltage: DC
Pressure type: Relative pressure
Protection class: IP65

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
