Drucktransmitter mit Spannungsausgang (3-Leiter)

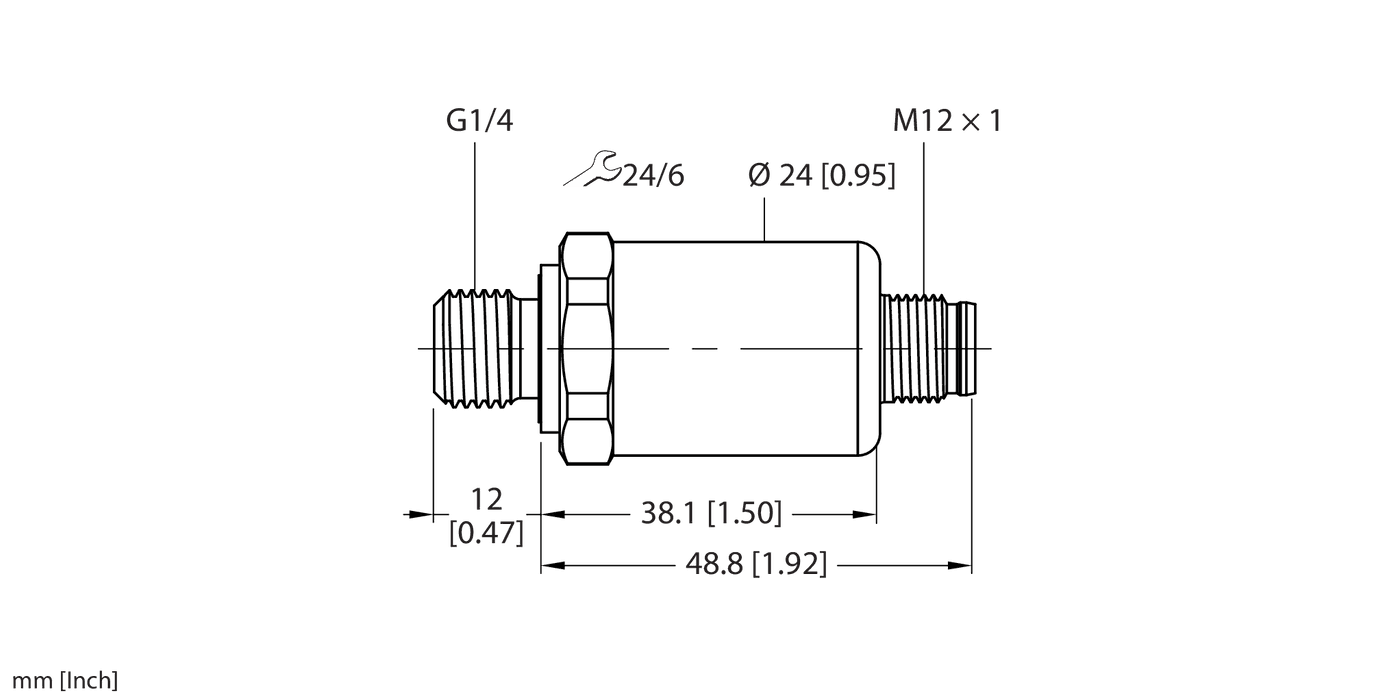

PT250R-2004-U1-H1143/O

Order ID no. 100052882

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Connector type: M12 x 1
Design: Without display
Electrical output: Voltage output (3-wire)
Electrical connection: Connector
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Operating voltage: DC
Output function: Analog output voltage
Pressure range: 0...250 bar
Pressure type: Relative pressure
Process connection: G 1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Protection class: IP67

Electrical output: Voltage output (3-wire)
Process connection: G 1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0...250 bar
