- Protection class
- IP67
- Switching element function
- NO/NC
- Output function
- PNP/NPN, analog output
- Design
- Threaded barrel
- Medium
- liquids, Bulk goods
- Detection type
- contactless
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Stainless steel
- Housing quality
- 1.4404 (AISI 316L)
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 45
- Max. range (mm)
- 3000
- Measuring principle
- Ultrasonic
- Function
- Proximity switch
- Construction size
- M30 x 1.5
- Special features
- Synchronization, Pushbutton
- Function
- Level detection, Continuous level measurement

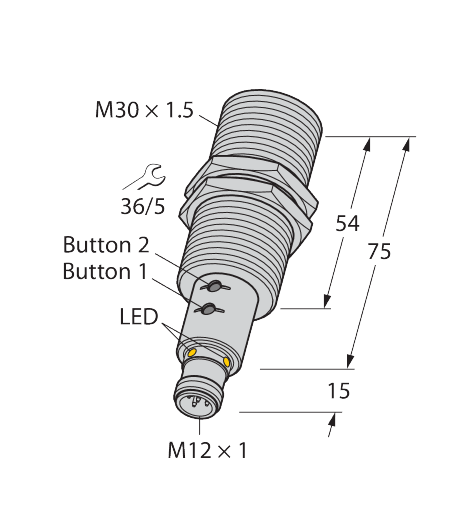

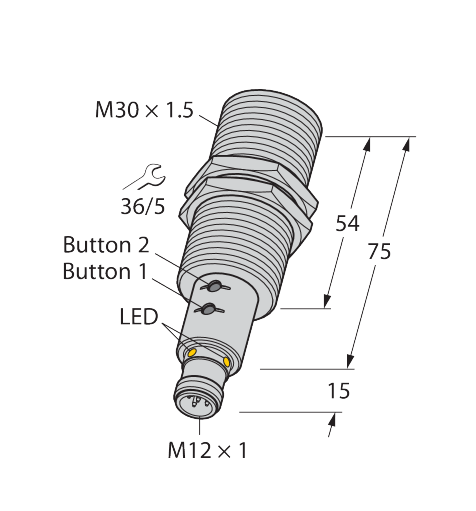

- Dimensions
- 30 mm x 89 mm
- Operating mode
- Time-of-Flight
- Quality active face
- Epoxy
- Resolution
- 1 cm
- Setting option
- Push Button, Remote Teach, IO-Link
- Radiation direction
- straight
