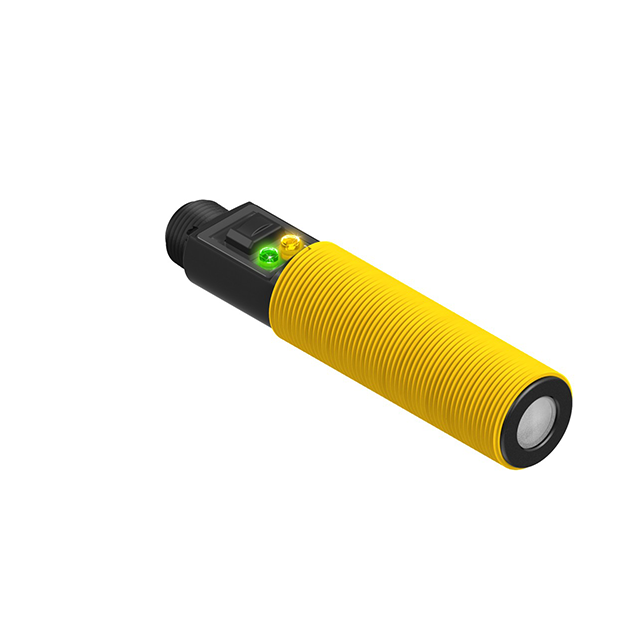

Ultrasonic Sensor
S18UBAQ
Order ID no. 3002712
In Stock
Price Group
F3
List Price
€328.40
Item Total
€328.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Special features
Clear object detection
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 × 1
Design
Tube

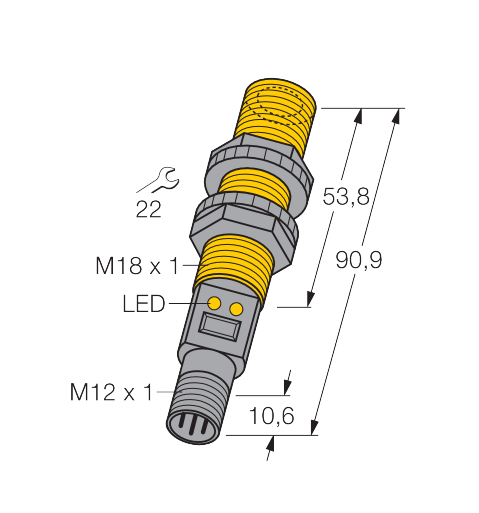

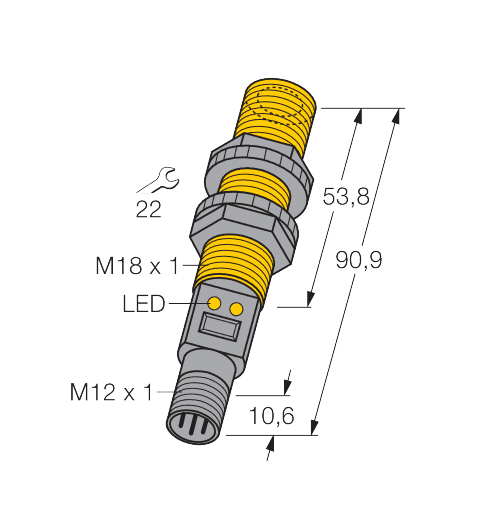

Dimensions (L x W x H)
18 mm x 90,9 mm
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
300
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Max. range (mm)
300
