Ultrasonic Sensor
Q45UBB63DAQ
Order ID no. 3044129
In Stock
home
Turck-Shop
Products
Sensors
Ultrasonic Sensors
Q45UBB63DAQ
Technical Data
Downloads
Special features
Clear object detection
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
2
Electrical connection
Connector
Connector type
7/8″
Design
Rectangular

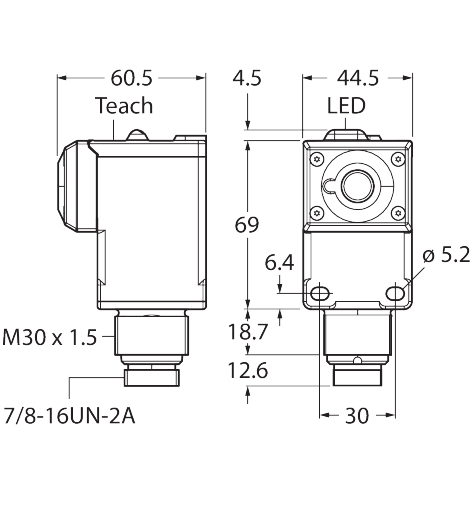

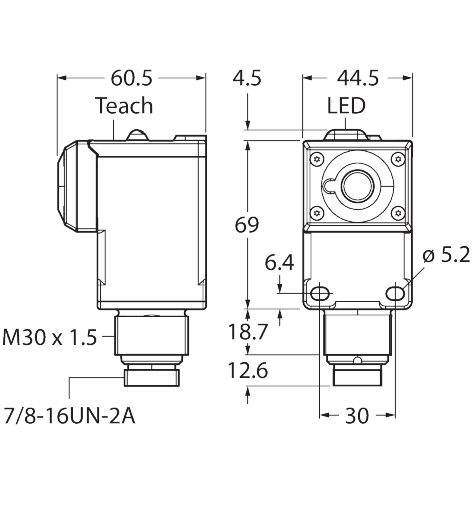

Dimensions (L x W x H)
60,5 mm x 44,5 mm x 102,6 mm
Housing material
Plastic
Housing quality
PBT
Function
Proximity switch
Operating mode
Time-of-Flight
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
1400
Switching element function
NO contact
Radiation direction
straight
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Max. range (mm)
1400
Price Group
F3
List Price
€581.00
Item Total
€581.00
