QS18UNAQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Ultrasonic sensor Diffuse-mode sensor
QS18UNAQ
Order ID no. 3073154
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Connector type
M8 x 1
Design
Rectangular with thread

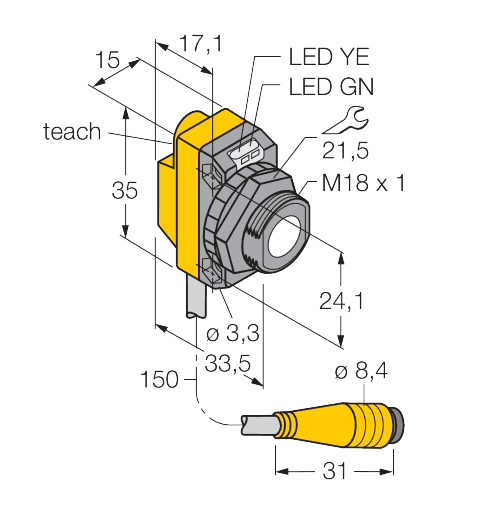

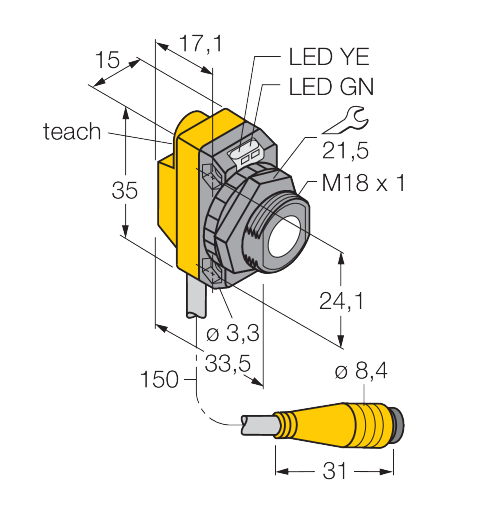

Dimensions (L x W x H)
33,5 mm x 15 mm x 35 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Plastic
Housing quality
ABS
Max. range (mm)
500
Operating mode
Time-of-Flight
Output function
NPN
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Switching element function
NO contact
Key Features
Electrical connection
Cable with connector
home
Turck-Shop
Products
Sensors
Ultrasonic Sensors
QS18UNAQ
Output function
NPN
Max. range (mm)
500
In Stock
Price Group
F3
List Price
200,10 €
Item Total
200,10 €
