Ultrasonic Sensor
QS18UPAQ8
Order ID no. 3073156
In Stock
Price Group
F3
List Price
€181.50
Item Total
€181.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Rectangular with thread
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Max. range (mm)
500
Function
Proximity switch
Special features
Clear object detection

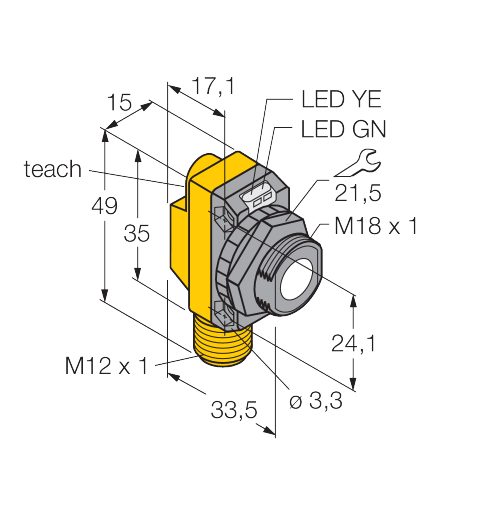

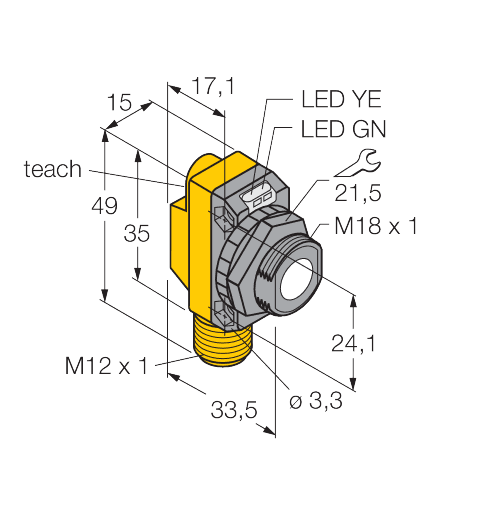

Dimensions
33,5 mm x 15 mm x 35 mm
Operating mode
Time-of-Flight
Radiation direction
straight
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
500
