QS18UNAEQ7 | TURCK - Your Global Automation Partner
Ultrasonic sensor Diffuse-mode sensor
QS18UNAEQ7
Order ID no. 3073162
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Connector type
M12 x 1
Design
Rectangular with thread

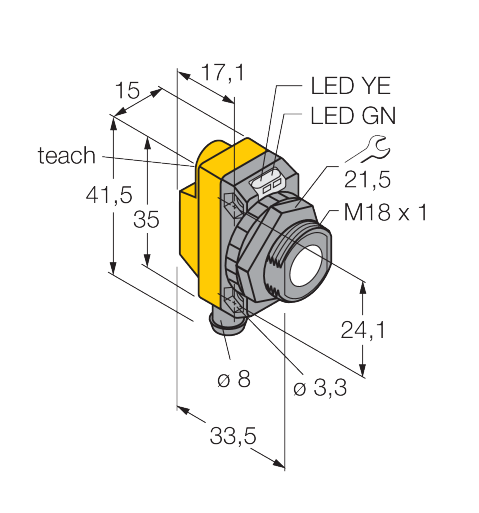

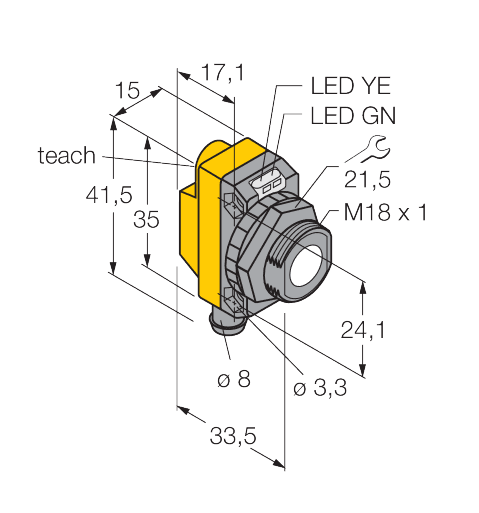

Dimensions (L x W x H)
33,5 mm x 15 mm x 35 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
ABS
Max. range (mm)
500
Operating mode
Time-of-Flight
Output function
NPN
Protection class
IP68
Radiation direction
straight
Special features
Clear object detection, Wash down
Switching element function
NO contact
Key Features
Electrical connection
Connector
Output function
NPN
Max. range (mm)
500
In Stock
Price Group
F3
List Price
168,30 €
Item Total
168,30 €
