QS18UNAEQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

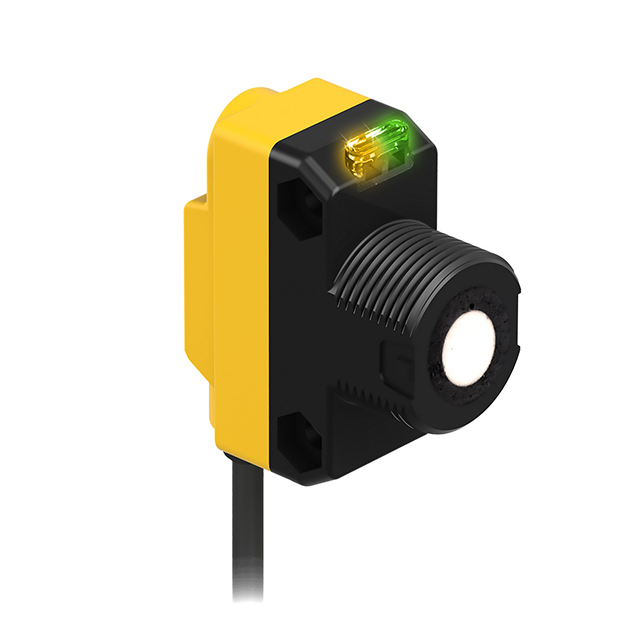

Ultrasonic sensor Diffuse-mode sensor
QS18UNAEQ
Order ID no. 3073164
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Connector type
M8 x 1
Design
Rectangular with thread

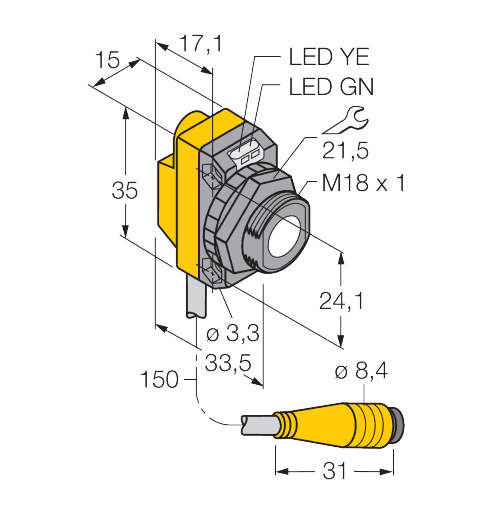

Dimensions (L x W x H)
33,5 mm x 15 mm x 35 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Plastic
Housing quality
ABS
Max. range (mm)
500
Operating mode
Time-of-Flight
Output function
NPN
Protection class
IP68
Radiation direction
straight
Special features
Clear object detection, Wash down
Switching element function
NO contact
Key Features
Electrical connection
Cable with connector
Output function
NPN
Max. range (mm)
500
In Stock
Price Group
F3
List Price
200,10 €
