Ultrasonic Sensor

QT50ULB-CRFV

Order ID no. 3074833

Special features: Chemical-resistant, Clear object detection, Resistant to chemicals
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Cable length (m): 2
Electrical connection: Cable
Design: Rectangular

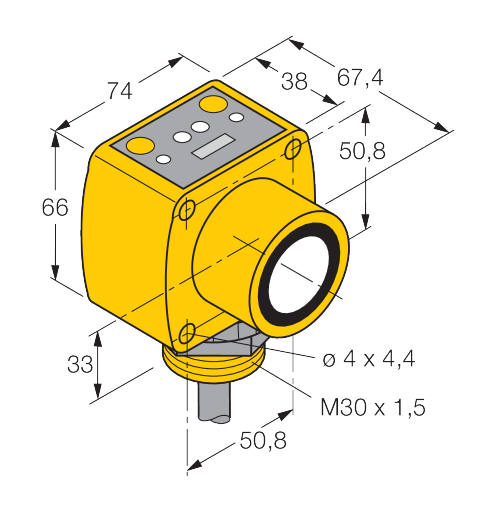

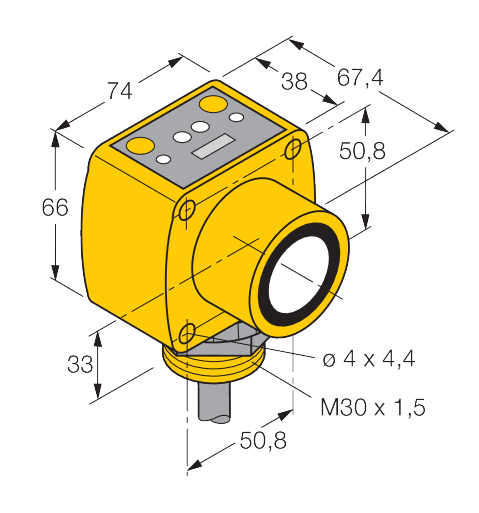

Dimensions (L x W x H): 67,4 mm x 74 mm x 84,2 mm
Housing material: Plastic
Housing quality: PBT
Function: Proximity switch
Operating mode: Time-of-Flight
Output function: Analog output
Protection class: IP67
Max. range (mm): 6000
Radiation direction: straight
