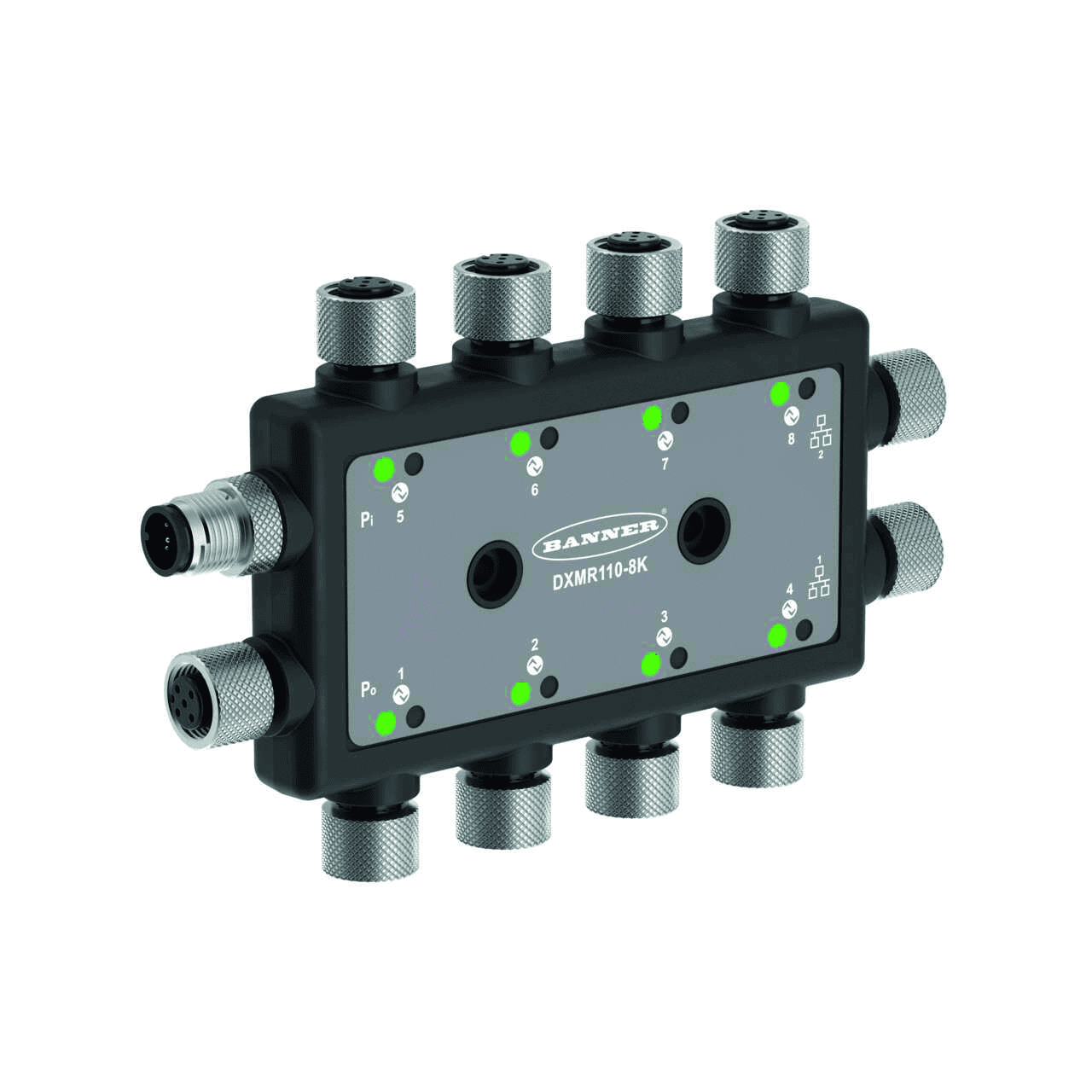

Network Controller 8 IO-Link Master Ports

DXMR110-8K

Order ID no. 3814332

Item Total729,00 €

Quantity

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Antenna connection: No radio participant
Approvals: CE, UKCA
Cascadable: Yes
Communication protocol: EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS485
Connector type: M12 x 1
Design: Rectangular
Dimensions (L x W x H): 16 mm x 121,7 mm x 63,5 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PC
Input type: Communication protocol
Operating voltage: DC
Output type: IO-Link
Protection class: IP67
Runs with battery: No

Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
Input type: Communication protocol
Output type: IO-Link
