TIV12MG-Q110N | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Camera-based AI solution

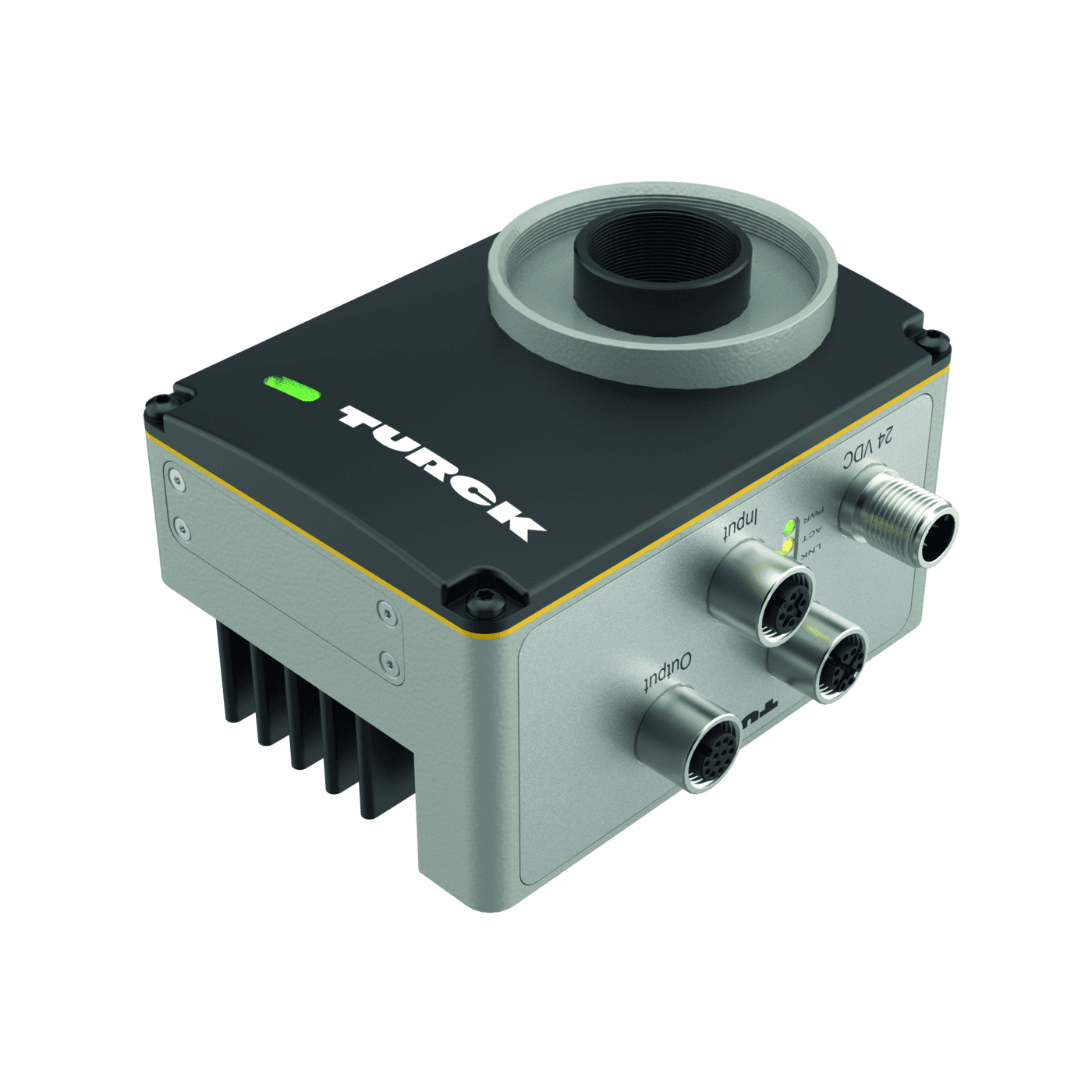

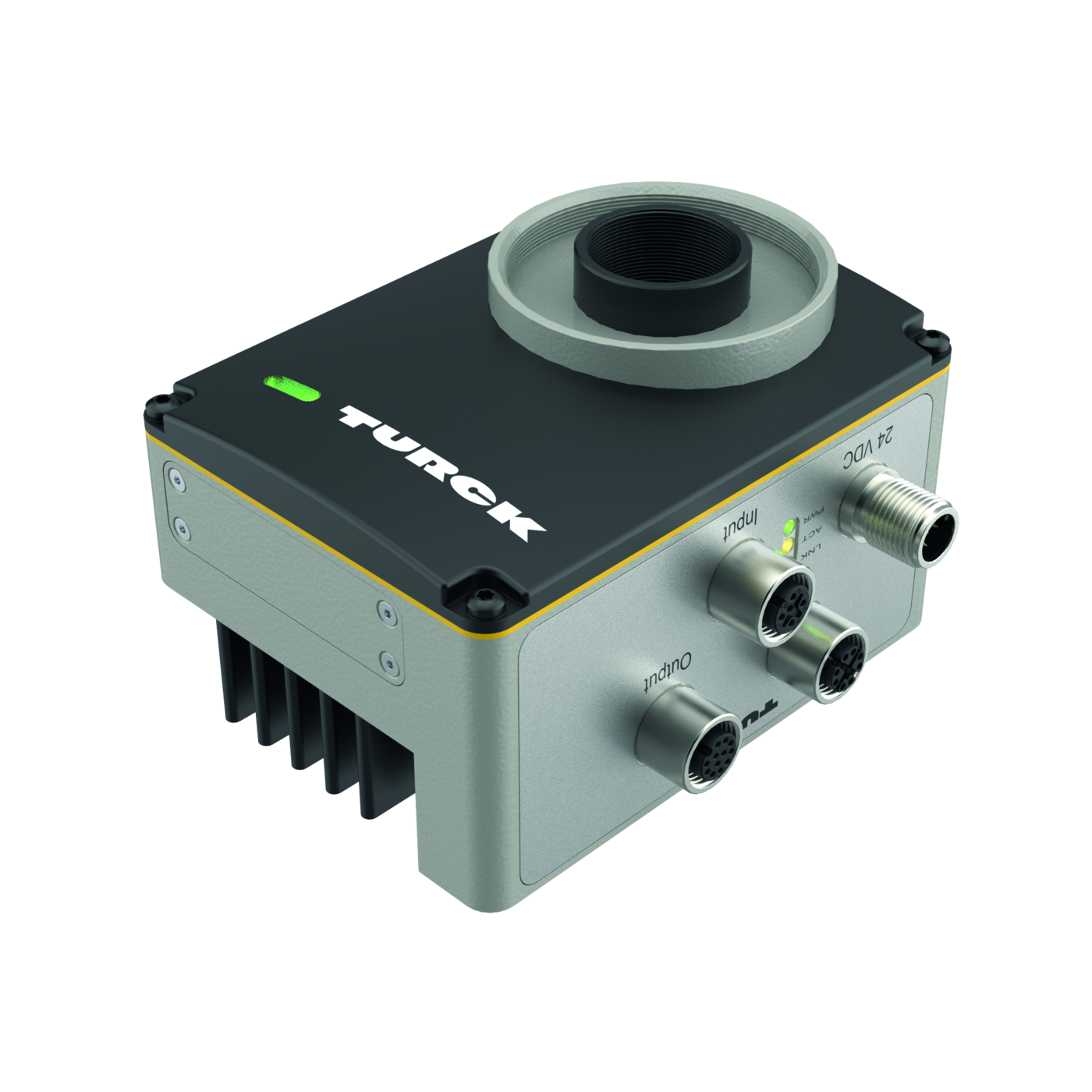

TIV12MG-Q110N
Order ID no. 100048288
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
40
Ambient temperature min. (°C)
-20
Communication protocol
RFC1006, TCP/IP
Connector type
M12 x 1
Design
Rectangular

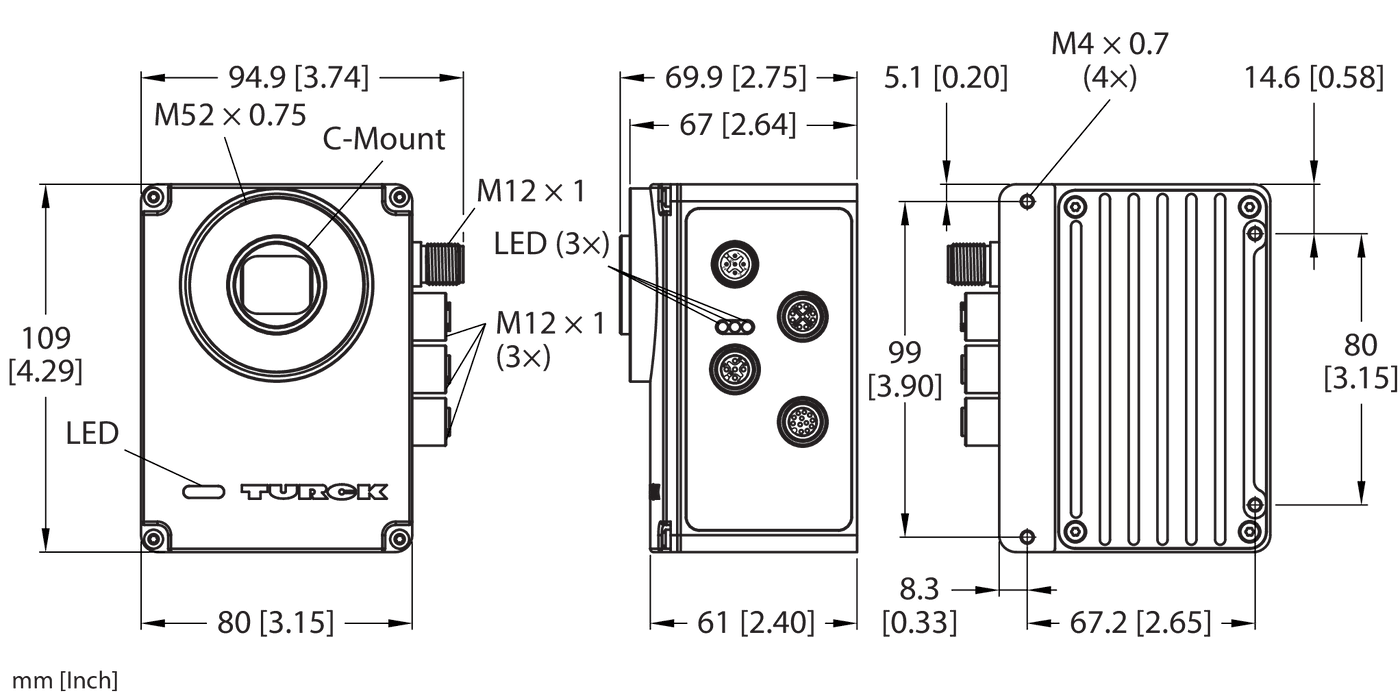

Dimensions (L x W x H)
109 mm x 94,9 mm x 69,87 mm
Electrical connection
Connector
Function
Barcode reader - smart camera
Housing material
Aluminium
Housing quality
AL
Operating voltage
DC
Output function
4 × programmable push/pull, optically isolated
Power supply connectivity
M12, 5-polig, D-codiert
Protection class
IP67
Switching element function
Input/output programmable
Key Features
Communication protocol
TCP/IP, RFC1006
In Stock
Price Group
D2
List Price
16.500,00 €
