- Protection class
- IP65
- Network protocol
- PROFIsafe via PROFINET
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Number of channels
- 16
- Installation area
- zone 2, zone 22
- Connection technology signal
- M12
- Signal type
- Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link

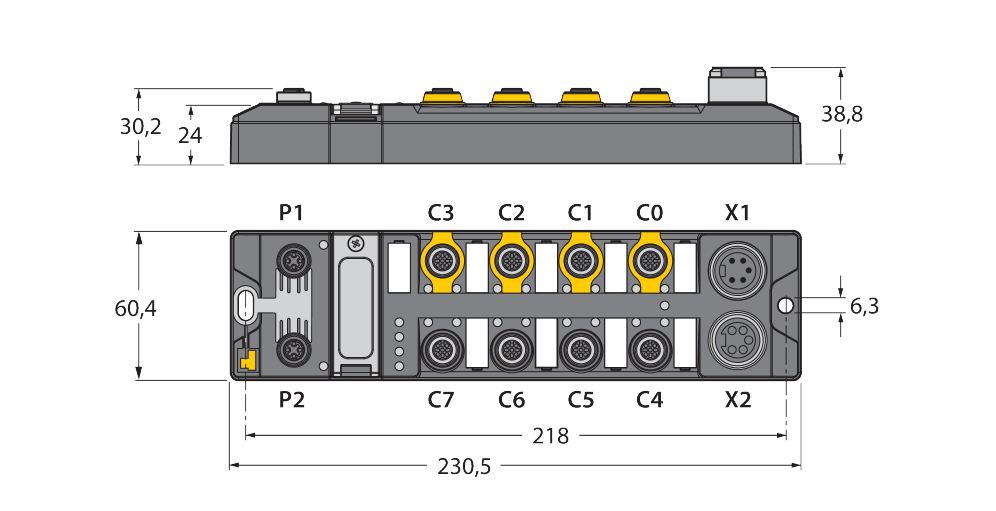

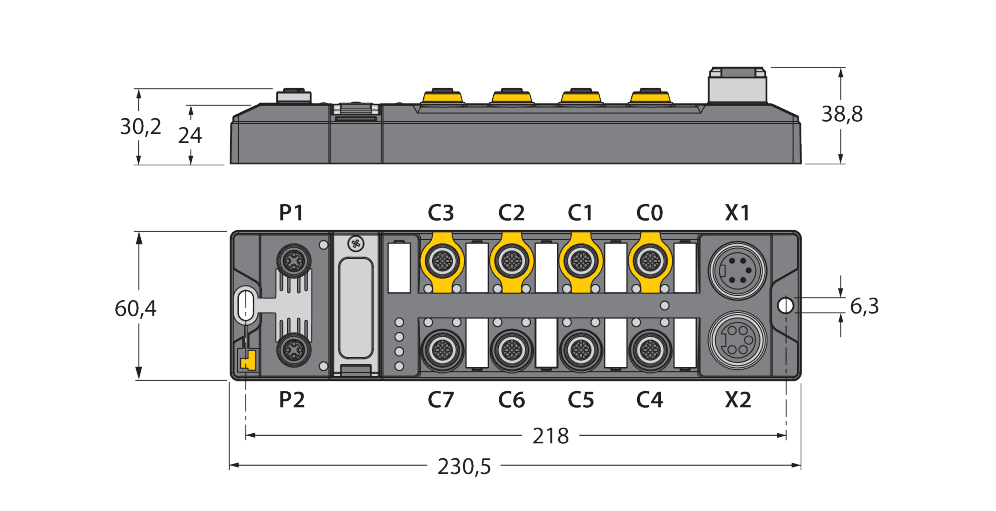

- Dimensions
- 230,5 mm x 60,4 mm x 38,8 mm
- Fieldbus connection technology
- 2 × M12, 4-pin, D-coded
- Fieldbus transmission rate
- 100 Mbps
- Voltage supply connection
- 7/8″, 5-pin
- Device type
- I/O Module, Compact station
- PL acc. to EN ISO 13849-1
- Level e
- SIL acc. to IEC 61508
- 3
- Category acc. to ISO 13849-1:2008
- 4
