- Programming
- CODESYS V3
- Fieldbus master
- PROFINET
- Fieldbus slave
- PROFINET
- Protection class
- IP65
- Network protocol
- PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, RS485, RS232, CANopen, SAE J1939
- Approvals
- ATEX Zone 2/22, cULus, IECEx
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Number of channels
- 16
- Installation area
- zone 2, zone 22
- Output voltage
- 24 VDC from V2
- Connection technology signal
- M12
- Signal type
- Digital input, Digital input/output, Digital output
- Connection technology Ethernet
- 2 x M12, 4-pin, D-coded
- Transmission rate Ethernet
- 10/100 Mbps
- Device function
- Control

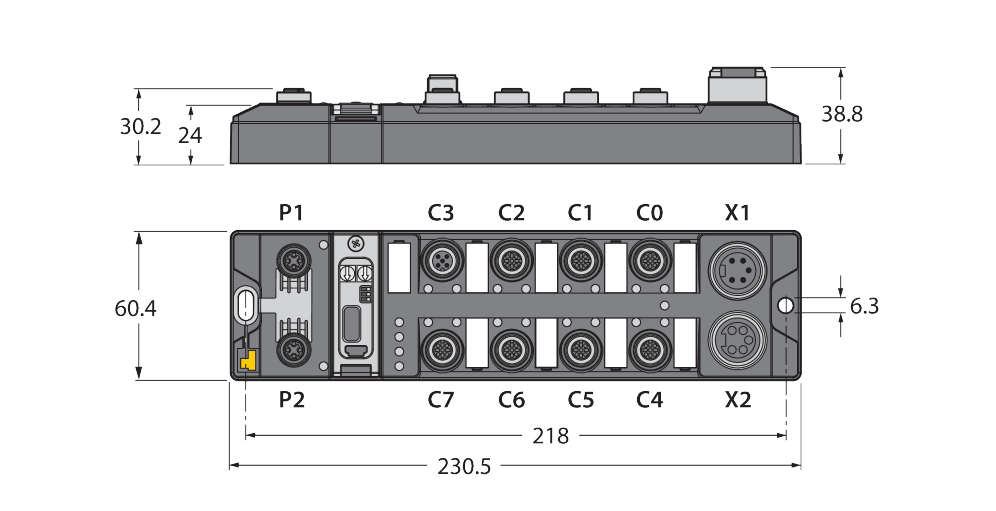

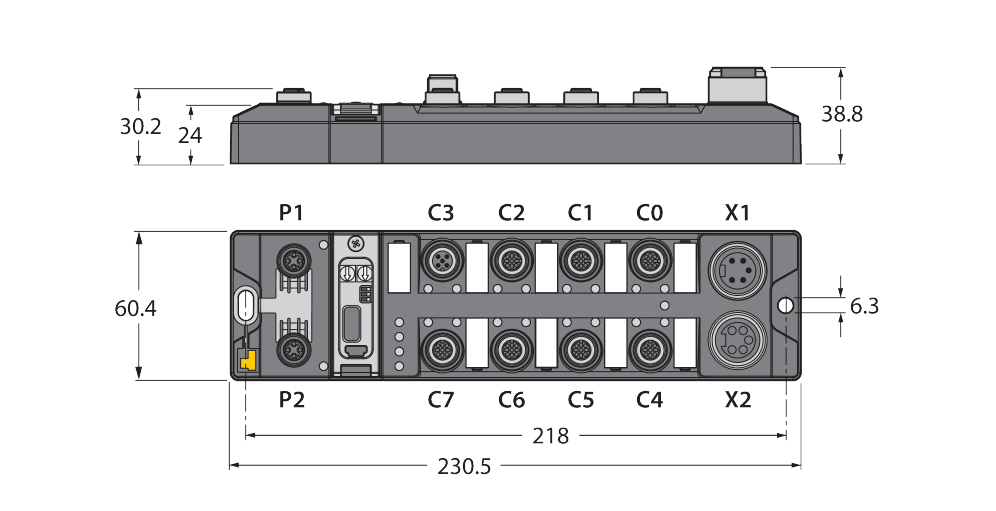

- Dimensions
- 230,5 mm x 60,4 mm x 38,8 mm
- Voltage supply connection
- 7/8″, 5-pin
- Device type
- Control, Cloud Gateway
