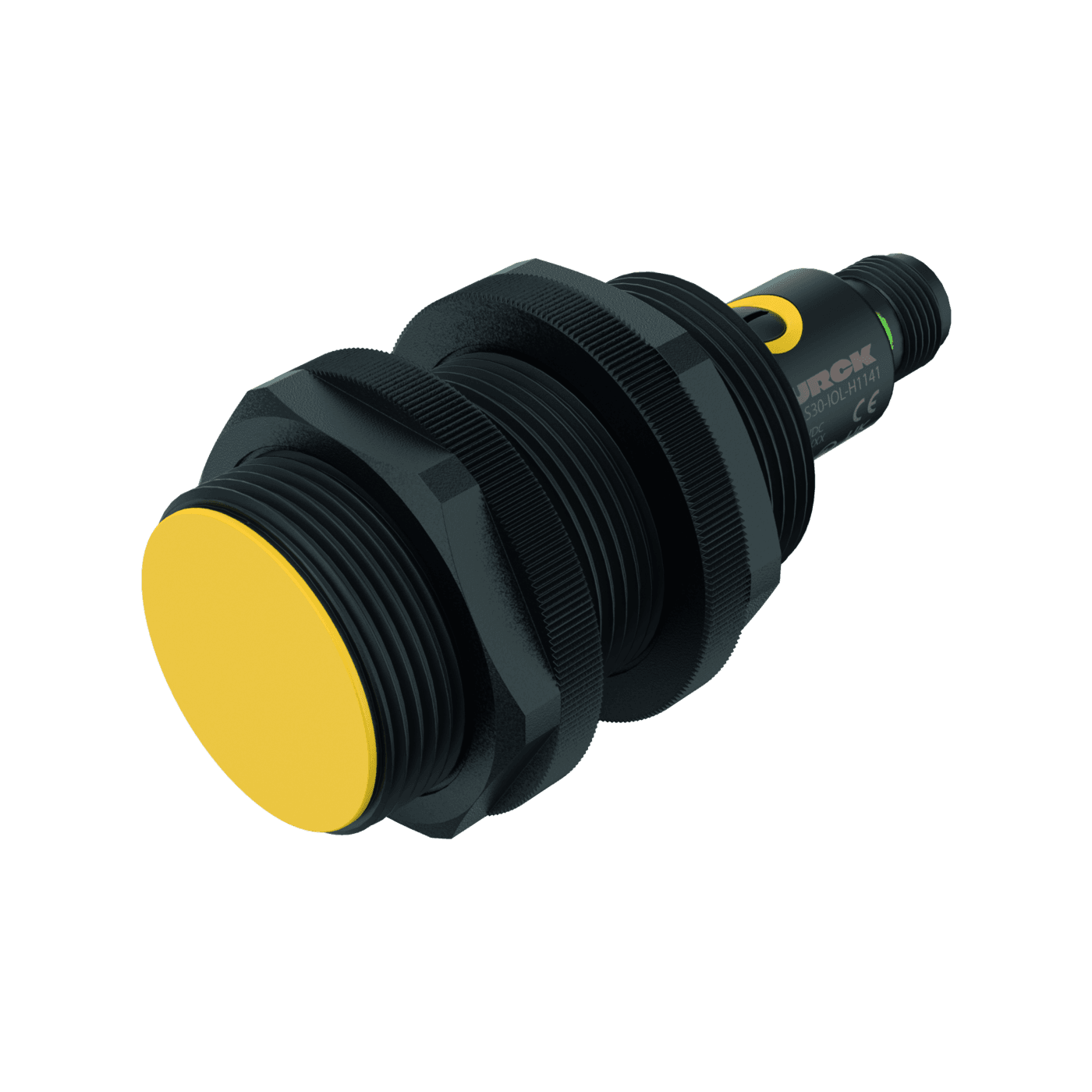

Capacitive sensor

UC25-S30-IOL-H1141

Order ID no. 100050171

Function: Level detection, For dry granules, For highly viscous media, Continuous level measurement
Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -40
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Design: Threaded barrel

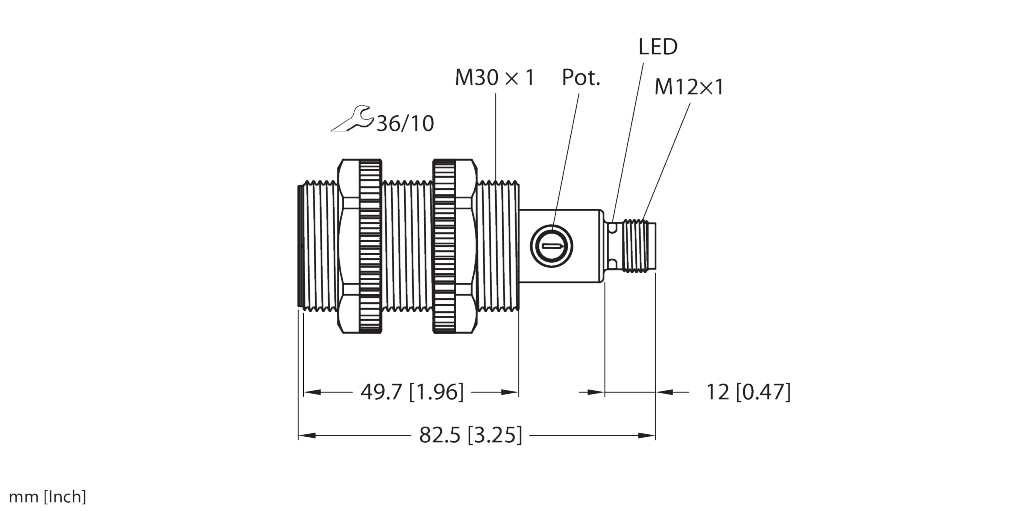

Dimensions: 30 mm x 82 mm
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Medium: Bulk goods, liquids
Media temperature max. (°C): 85
Media temperature min. (°C): -40
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Output function: PNP/NPN
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO/NC programmable
