Flow Sensor Immersion Sensor without Integrated Processor

FP100-300L-30-NA-H1141

Order ID no. 100001044

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -40
Approvals: CE, cULus
Bar length (mm): 45
Connector type: M12 x 1
Design: Without display (integrated probe)

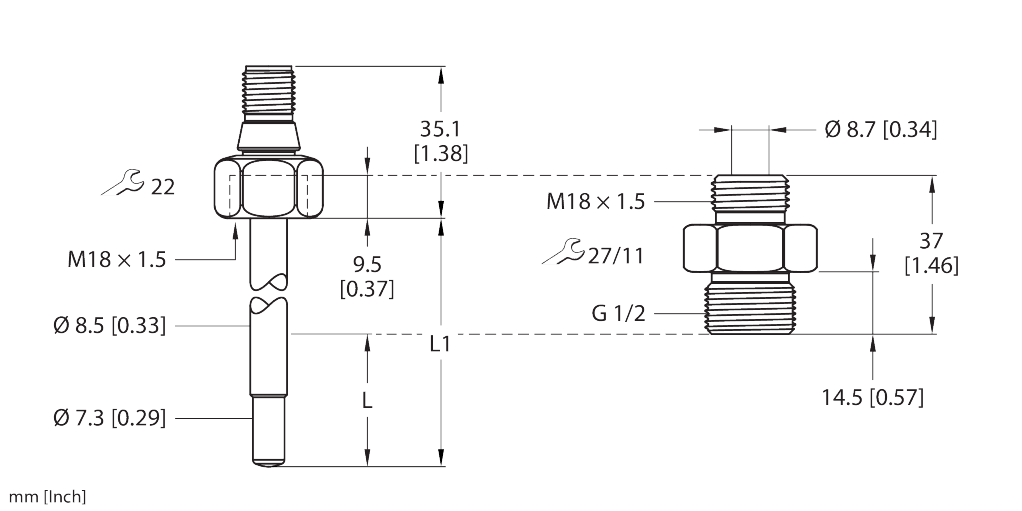

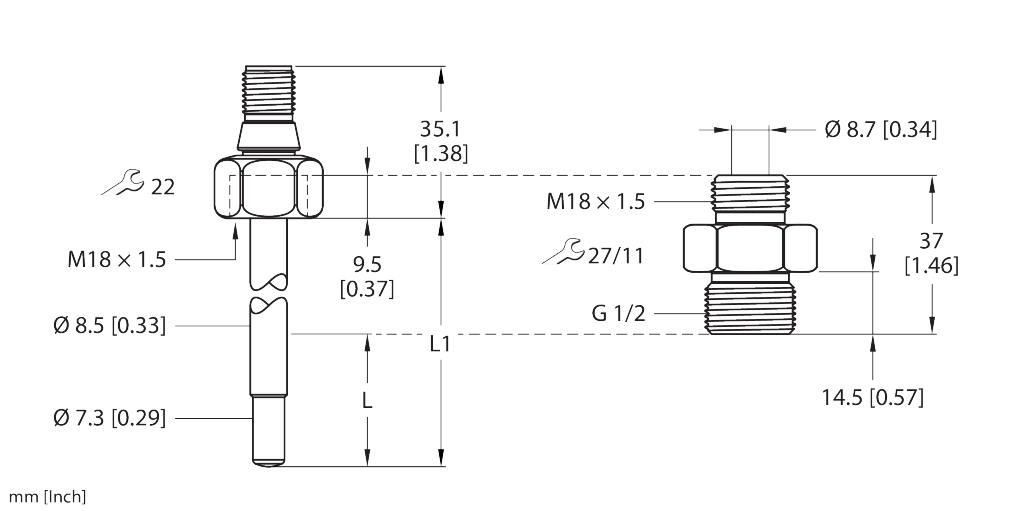

Dimensions (L x W x H): 121,1 mm x 38 mm x 49 mm
Display: 4-digit 12-segment display, rotatable by 180°, red or green
Electrical connection: Connector
Function: Flow monitoring
Housing material: Stainless steel
Housing quality: 1.4571 (AISI 316Ti)
Immersion depth (mm): 16.9
Materials (contact with media): Stainless steel 1.4571 (AISI 316Ti), FKM O-ring, AFM flat seal
Media temperature max. (°C): 85
Media temperature min. (°C): -25
Medium: liquids
Mounting conditions: Immersion sensor
Protection class: IP66, IP67, IP69K
