Flow Rate Measurement

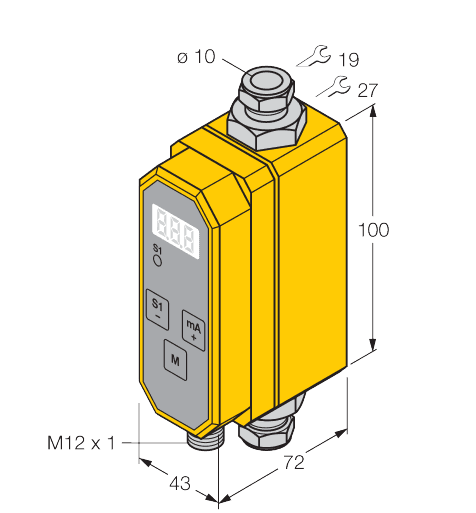

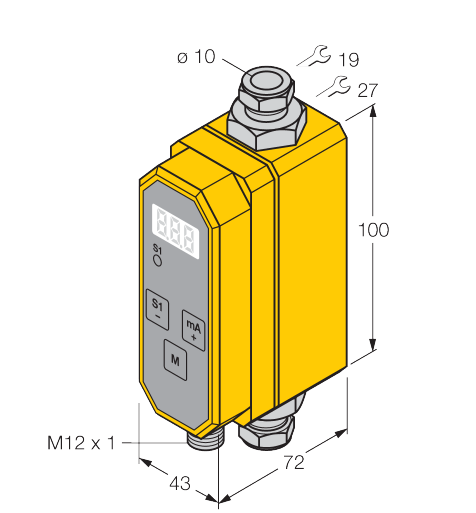

FCMI-10D08DYA4P-LIUP8X-H1141

Order ID no. 6870603

In Stock

homeHome
Loading...

Protection class: IP65
Switching element function: NO/NC programmable
Output function: PNP/Analog output
Design: Inline
Process connection: Compression fittings for pipes Ø 10 × 1 (EN10305-1)
Medium: liquids
Detection type: Magnetic-inductive
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT
Media temperature min. (°C): 5
Media temperature max. (°C): 60
Ambient temperature min. (°C): 0
Ambient temperature max. (°C): 60
Mounting conditions: Inline sensor
Operating voltage: DC
Function: Flow rate measurement
Application area: Standard

Key Features

Process connection: Compression fittings for pipes Ø 10 × 1 (EN10305-1)
Output function: PNP/Analog output

Price Group

C1

List Price

€1,120.00
