MR15-Q80-IOLCJ-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Radar Sensor

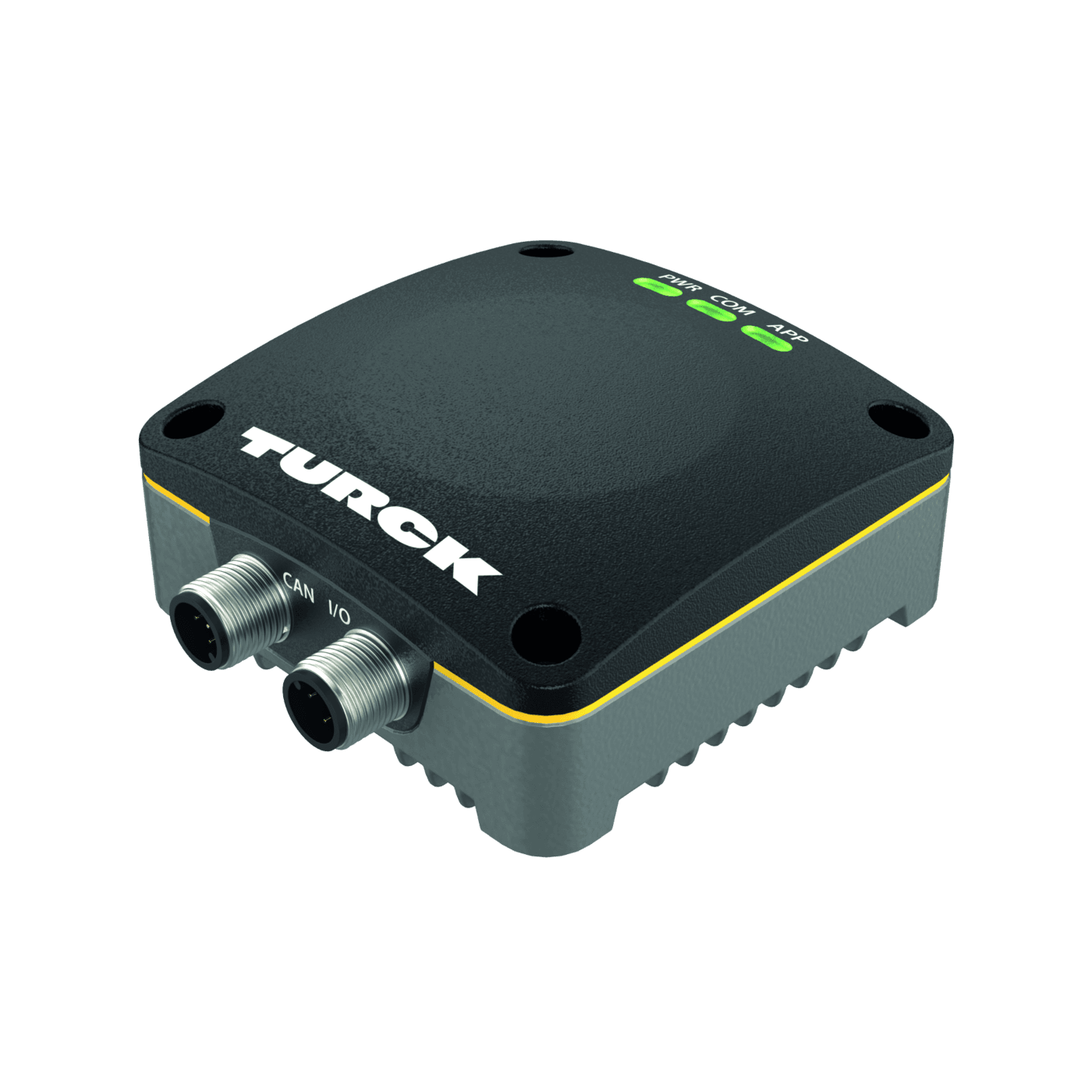

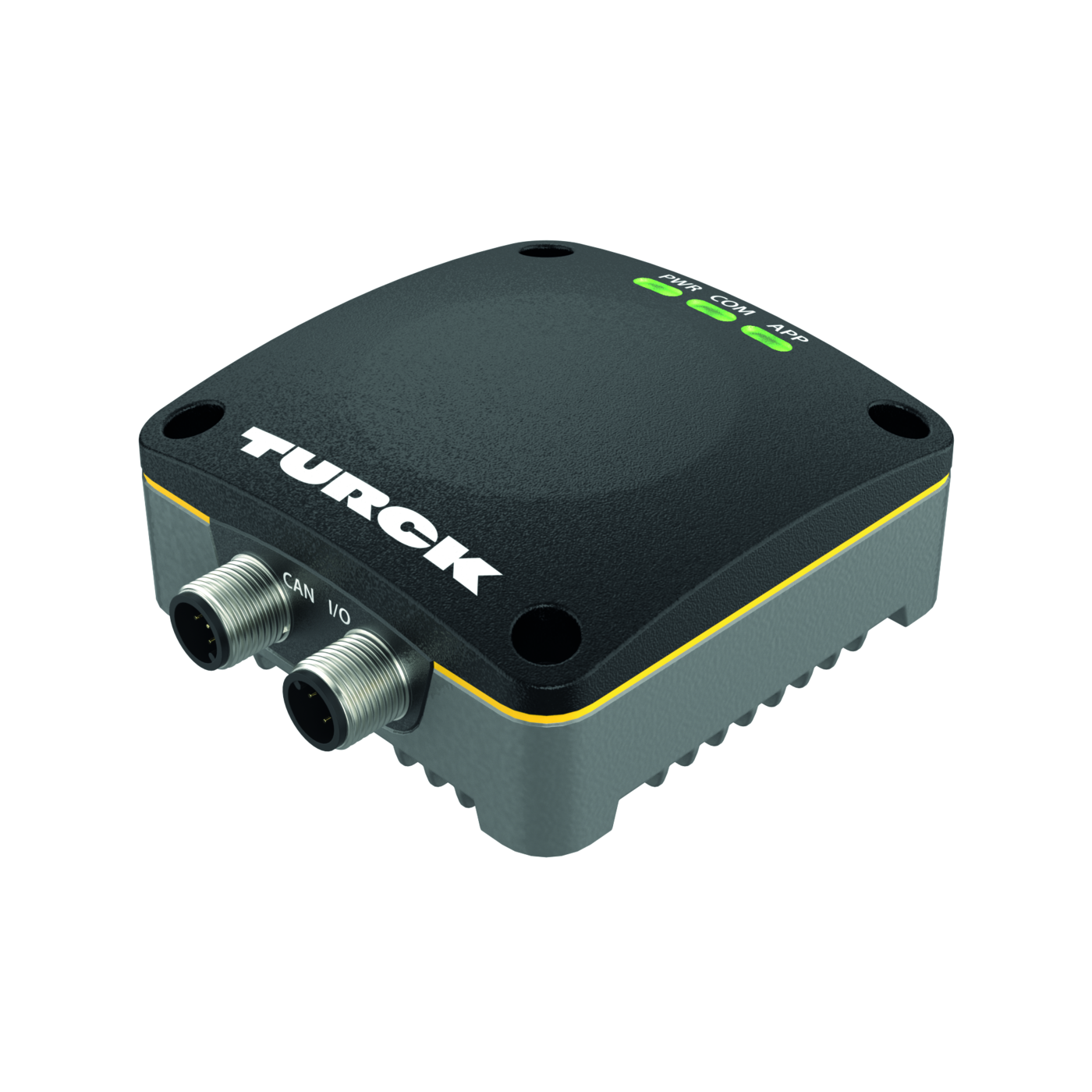

MR15-Q80-IOLCJ-H1141
Order ID no. 100041054
home
Home
Loading...
Technical Data
Downloads
Detection type
contactless
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Cone angle (°)
120
Communication protocol
IO-Link, SAE J1939
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

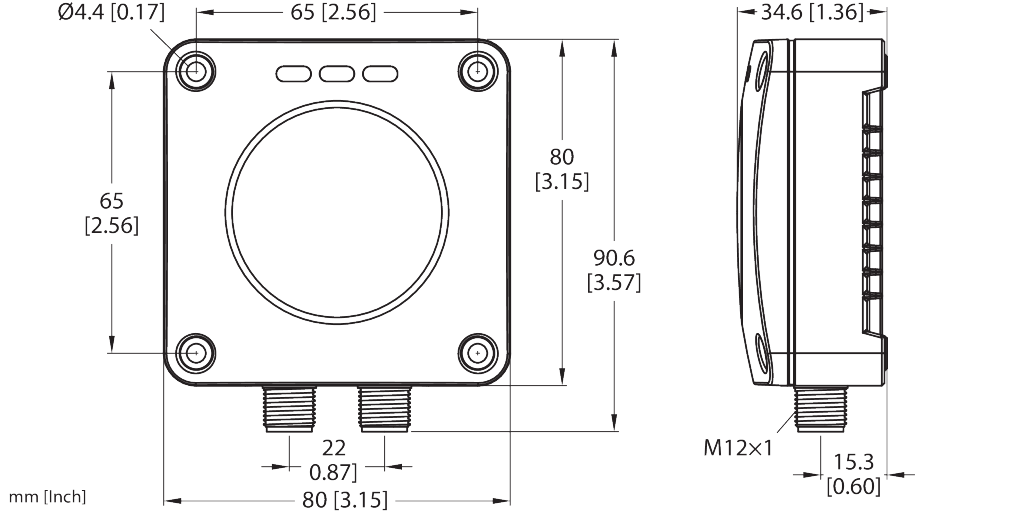

Dimensions (L x W x H)
90,6 mm x 80 mm x 34,6 mm
Frequency range
60–64 GHz
Housing material
Plastic
Housing quality
PBT-GF20, Die-cast aluminum alloy
Function
Radar scanner
Operating voltage
DC
Output function
PNP/NPN
Measuring principle
Radar
Protection class
IP67, IP68, IP69K
Beam angle
120°
Max. range (mm)
15000
Resolution
1 cm
Switching element function
NO/NC programmable
home
Turck-Shop
Products
Sensors
Radar Sensors
MR15-Q80-IOLCJ-H1141
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
120°
Max. range (mm)
15000
In Stock
Price Group
G1
List Price
€849.00
Item Total
€849.00
