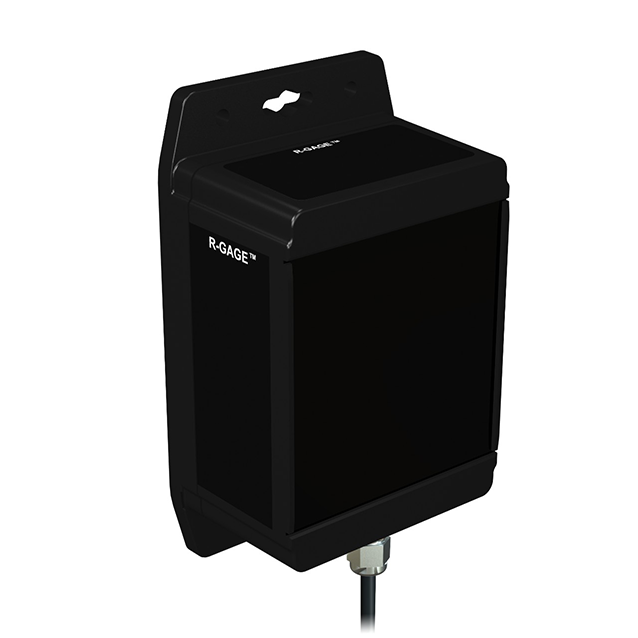

Radar Sensor
Q120RA-EU-AF2
Order ID no. 3025374
In Stock
Price Group
F3
List Price
€3,236.00
Item Total
€3,236.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
65
Max. range (mm)
40000
Beam angle
24° x 50°
Function
Proximity switch
Operating voltage
DC
Antenna connection
Internal, planar
Function
Distance measurement

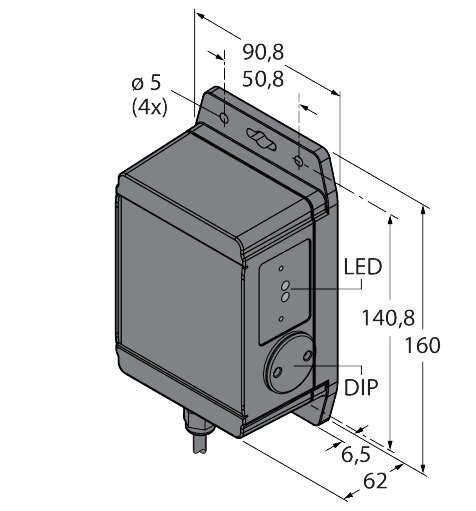

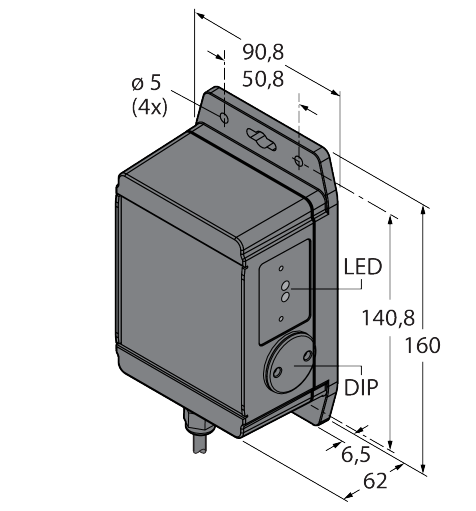

Dimensions
62 mm x 90,8 mm x 159,5 mm
Frequency band
K band, ISM region
Frequency range
24.05 - 24.25 GHz
Operating mode
Time-of-Flight
Setting option
DIP switch, Vision Software and Firmware
Key Features
Electrical connection
Cable
Output function
PNP/NPN
Beam angle
24° x 50°
Max. range (mm)
40000
