Q240RA-EU-AF2Q | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

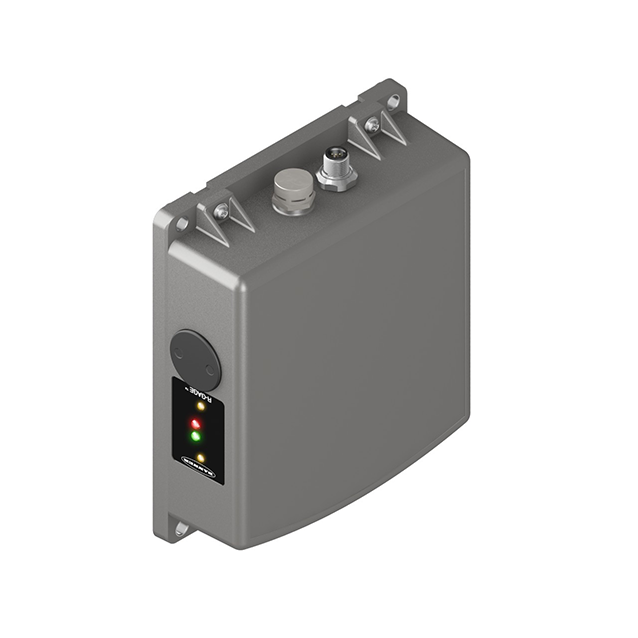

Radar Sensor
Q240RA-EU-AF2Q
Order ID no. 3092481
home
Home
Loading...
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Electrical connection
Connector
Connector type
M12 × 1
Design
Rectangular

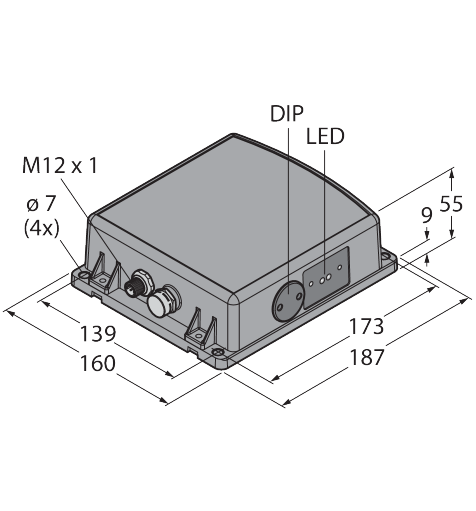

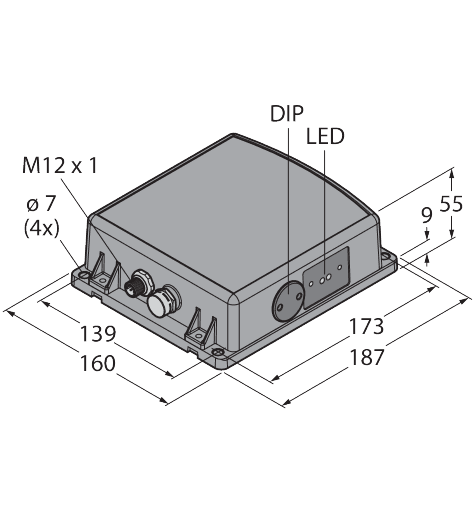

Dimensions (L x W x H)
55 mm x 158 mm x 186,9 mm
Frequency band
K band, ISM region
Frequency range
24.05…24.25 GHz
Housing material
Plastic
Housing quality
PC
Function
Proximity switch
Operating mode
Time-of-Flight
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67
Beam angle
11° x 13°
Max. range (mm)
40000
Setting option
DIP switch, Vision Software and Firmware
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
11° x 13°
home
Turck-Shop
Products
Sensors
Radar Sensors
Q240RA-EU-AF2Q
Max. range (mm)
40000
In Stock
Price Group
F3
List Price
€2,859.00
Item Total
€2,859.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
