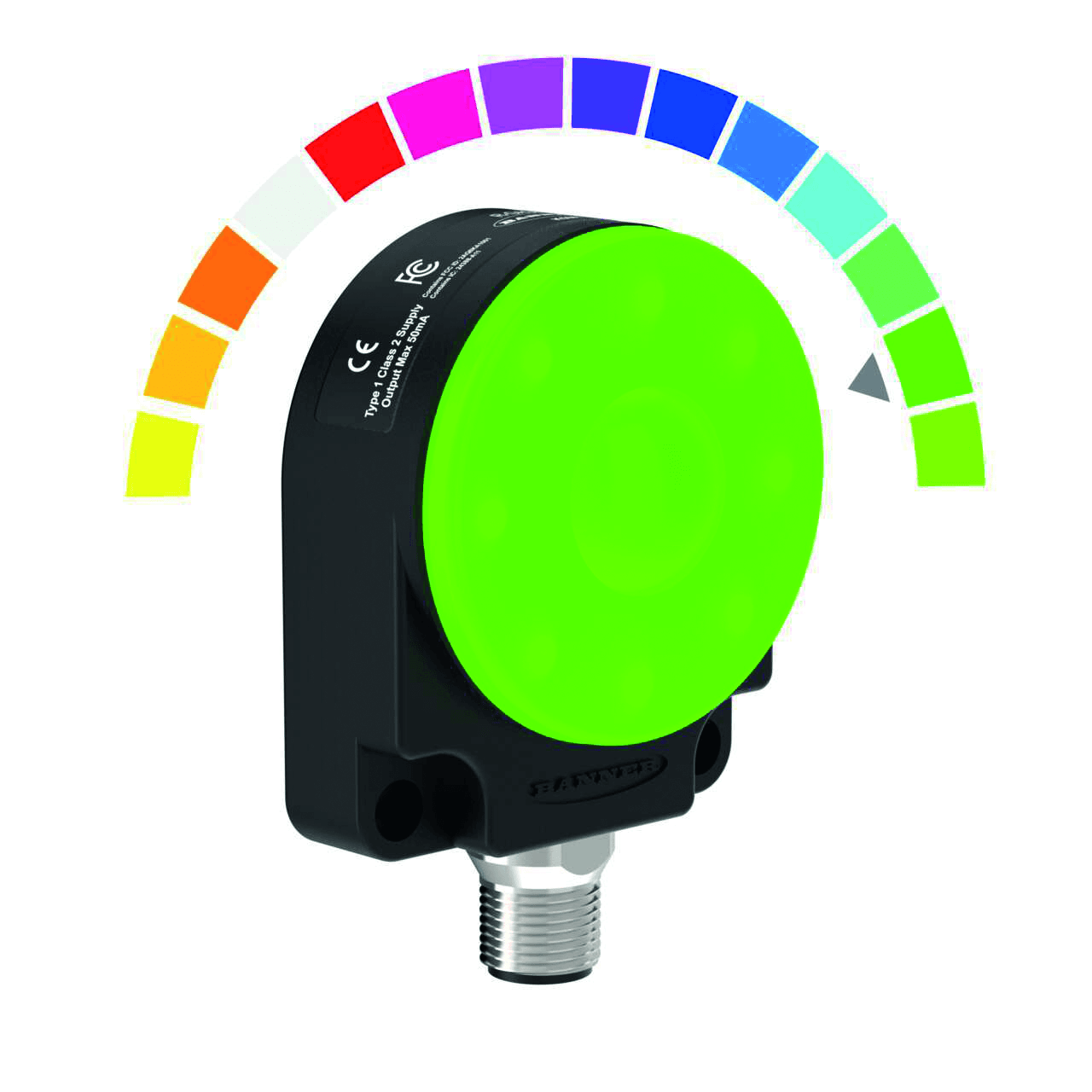

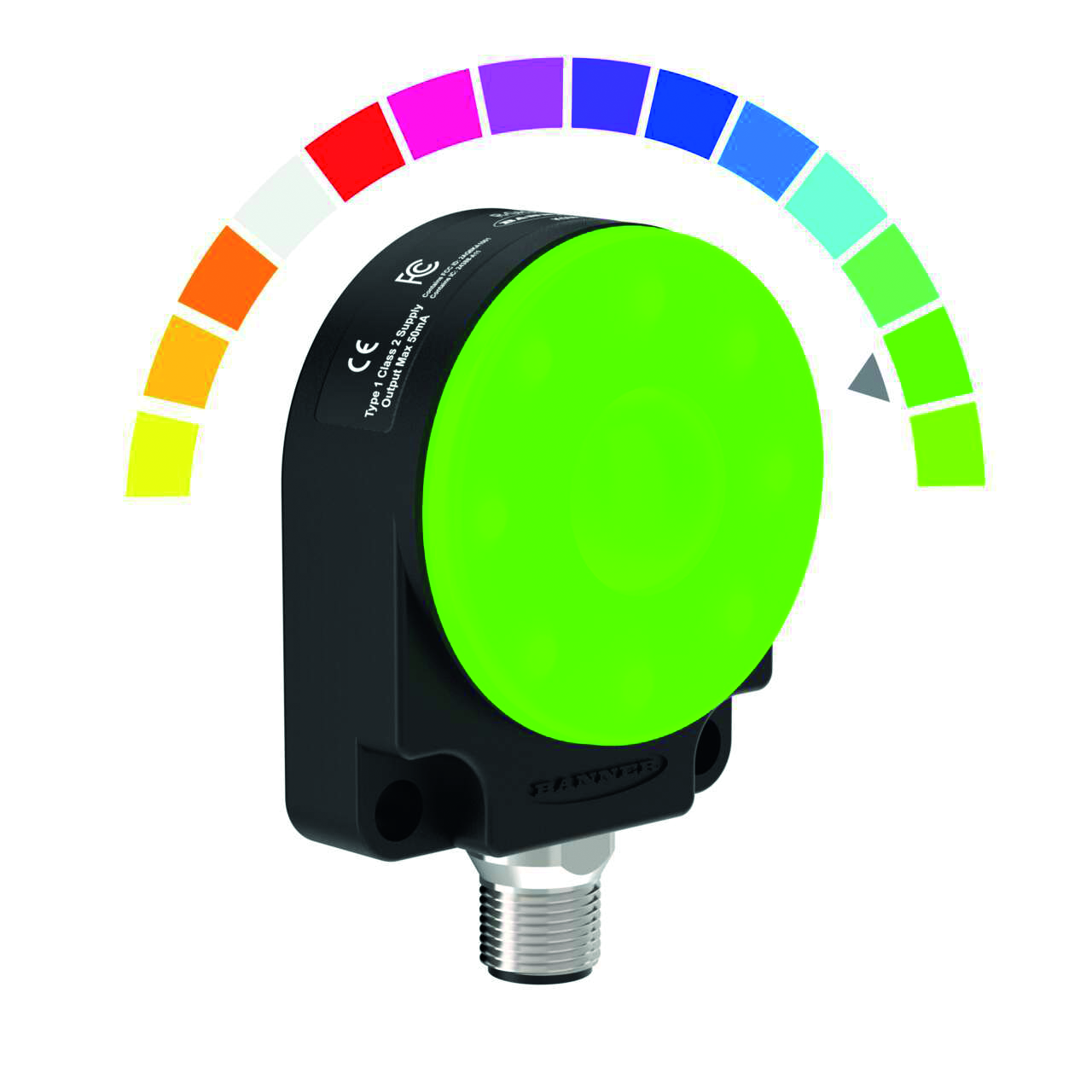

Radar Sensor
K50RPF-4030-LDQ
Order ID no. 3815569
In Stock
Price Group
F3
List Price
€368.90
Item Total
€368.90
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PC
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
60
Max. range (mm)
5000
Beam angle
40° × 30°
Function
Proximity switch
Operating voltage
DC
Antenna connection
Internal, planar
Function
Distance measurement
Dimensions
76 mm x 50 mm x 23,1 mm
Frequency band
F band, ISM region
Frequency range
60.5 GHz
Operating mode
Time-of-Flight
Setting option
Remote Teach, Vision Software and Firmware
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
40° × 30°
Max. range (mm)
5000
