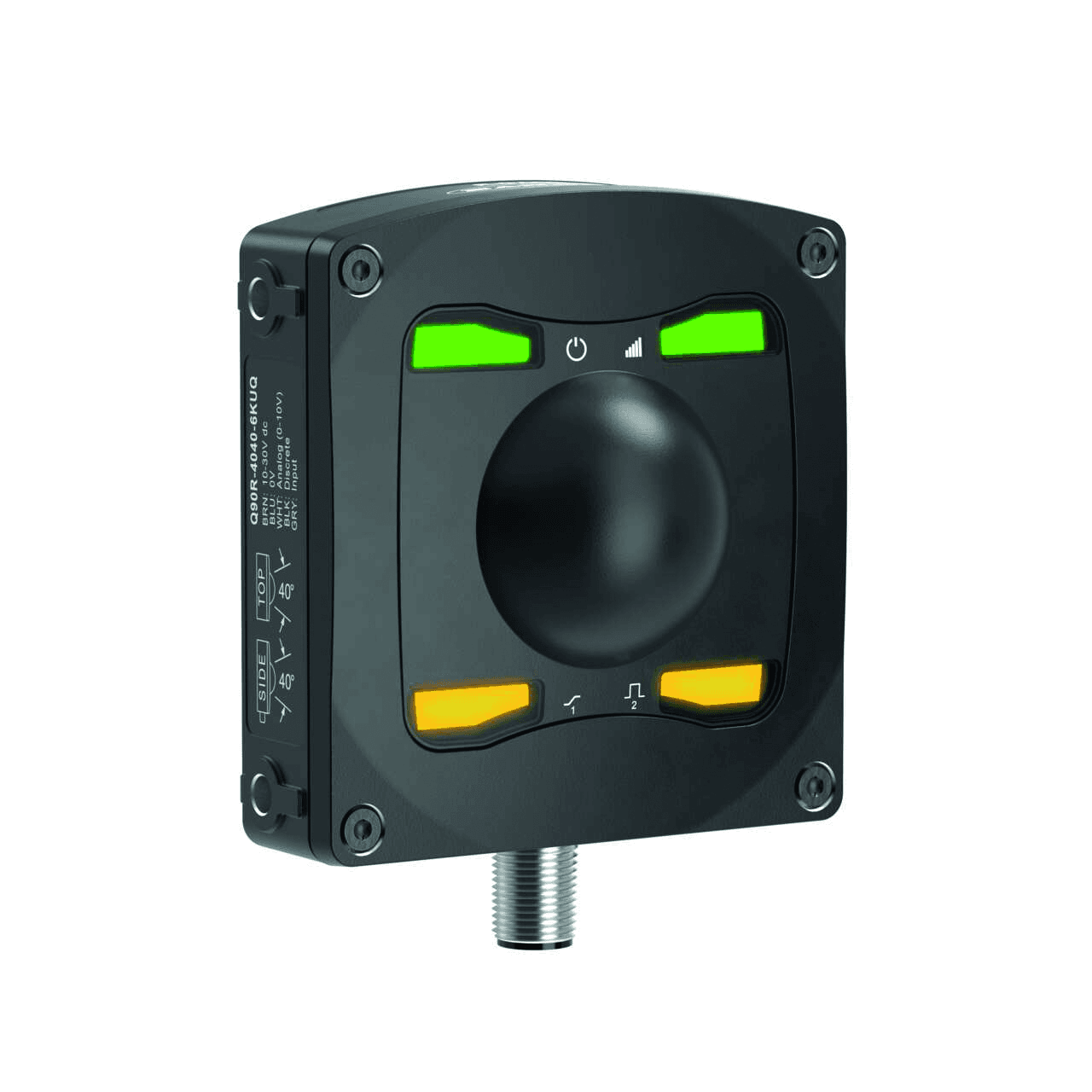

Radar Sensor
Q90R-4040-6KIQ
Order ID no. 3815694
home
Home
Loading...
Technical Data
Downloads
Function
Distance measurement
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Approvals
CE, UKCA, UL Listed
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

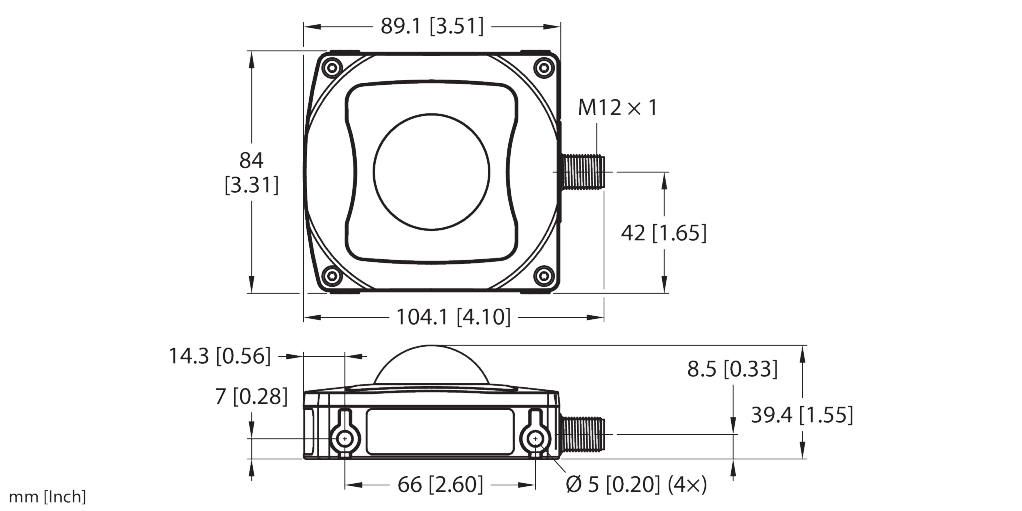

Dimensions (L x W x H)
84 mm x 17 mm x 84 mm
Frequency range
60.00…61.50 GHz
Housing material
Aluminium
Housing quality
AL
Operating voltage
DC
Output function
Push-pull, PNP/NPN programmable
Protection class
IP67
Max. range (mm)
20000
Switching element function
NO/NC programmable
Key Features
Electrical connection
Connector
Output function
Push-pull, PNP/NPN programmable
Max. range (mm)
20000
In Stock
Price Group
F3
List Price
€700.00
